Do not touch the parts (hard to resist.. i know..).

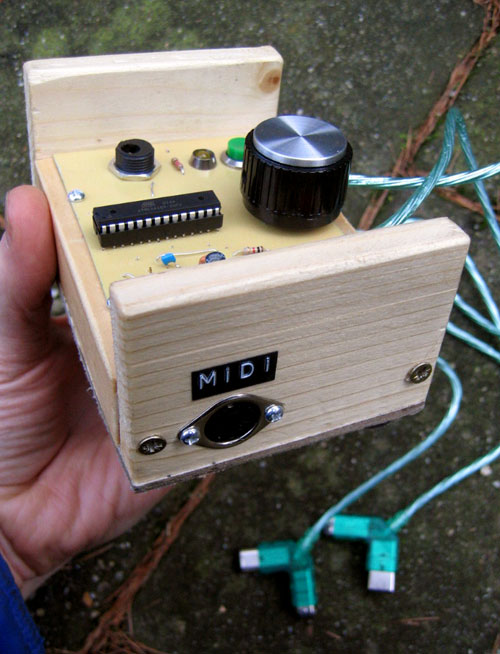

The FTDI is black(groud) on the side of the chip, green on the side of the midi port.
The Sync24 port is on the other side.

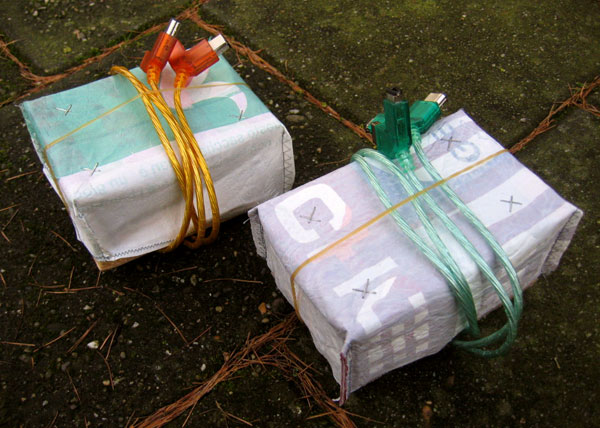

Packaging for transportation, fits neatly over the MCG with hard top. and plastic used from old plastic bags
melted together with a iron, like this
- Conections:
- 2 Gameboy clock outs.
Possible connections:- 2 Gameboys with LSDj
- 1 Gameboy with LSDj and 1 Gameboy with Nanoloop
- 2 Gameboys with Nanoloop
- 1 MIDI clock out.
- 1 Sync24 clock out.
- 2 Gameboy clock outs.
- Power:
- 5 to 12V DC (power supply is not included)
- + (plus) in the center.
- - (minus) on the outside.
- if you connect it the other way around it will destroy the device!
- Speed:
- About 40 BPM to about 255 BPM.
- BPM range can be adjusted in the script(check line 53 of script), this can be usefull for smoothening.
And i think gb colors cant go under 60 BPM.
You need a FTDI cable to do this.
- Programmer:
- FTDI TTL-232R USB-to-TTL serial cable connector, for modification of script on arduino (cable not included, costs about 20 dollar).
- Cost:
- MCG = €100,-
- + Shipping EU = €8
- + Shipping outside EU = €11,11
- Contact me if you to buy one.
- Payment can be done by Bank transfer or PayPal (ask me if a MCG is available before payment)
