Oscillatoscope1d assembling

last update: 19 Feb 2025

These are the assembling instructions for the oscillatoscope1d.
All SMT components are already soldered on the PCB.

Tips:

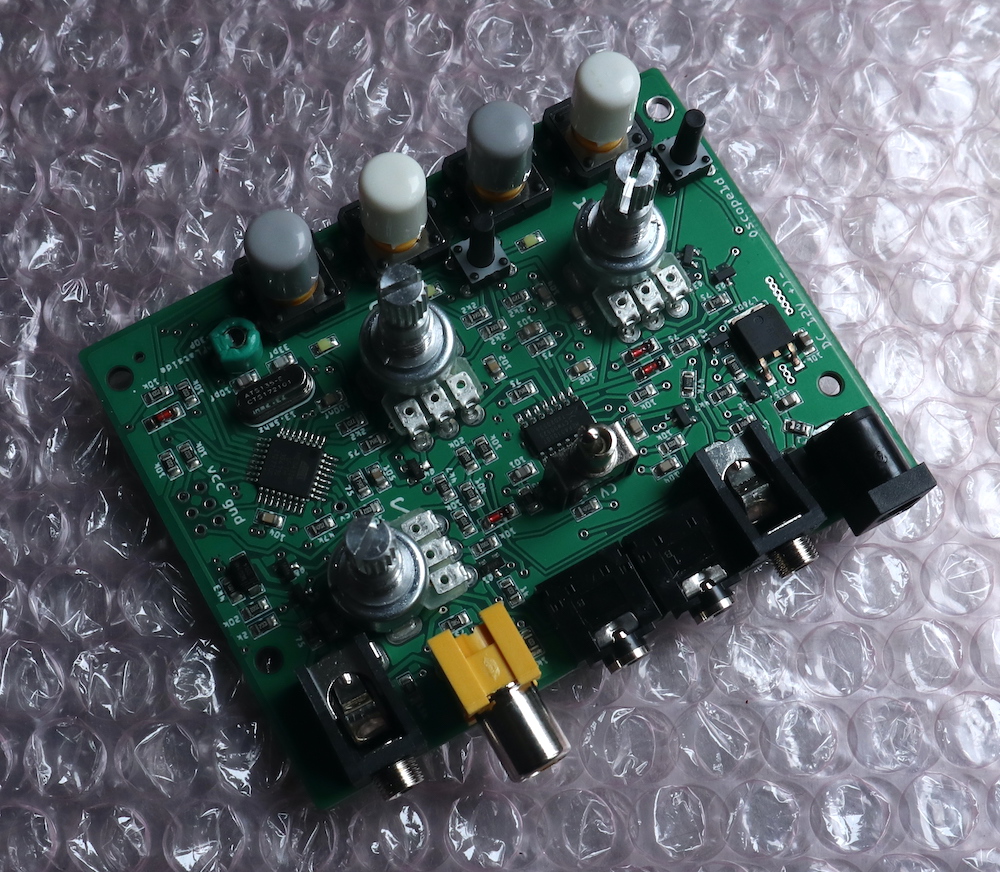

1. Solder all the small components, the Crystal, 12mm tactile switches, 6mm tactile switches, the green variable capacitor
2. Solder The jack sockets, power socket and the RCA Jack.
3. Solder the pots flat onto the PCB, this way they go thru the hols off the top pannel without bolting them to it, Solder the big 2 legs of the pots at 320 degrees and the small 3 legs of the pots at 280 degrees.
4. Test if everything is working. (if not send me a email and i can help maybe)

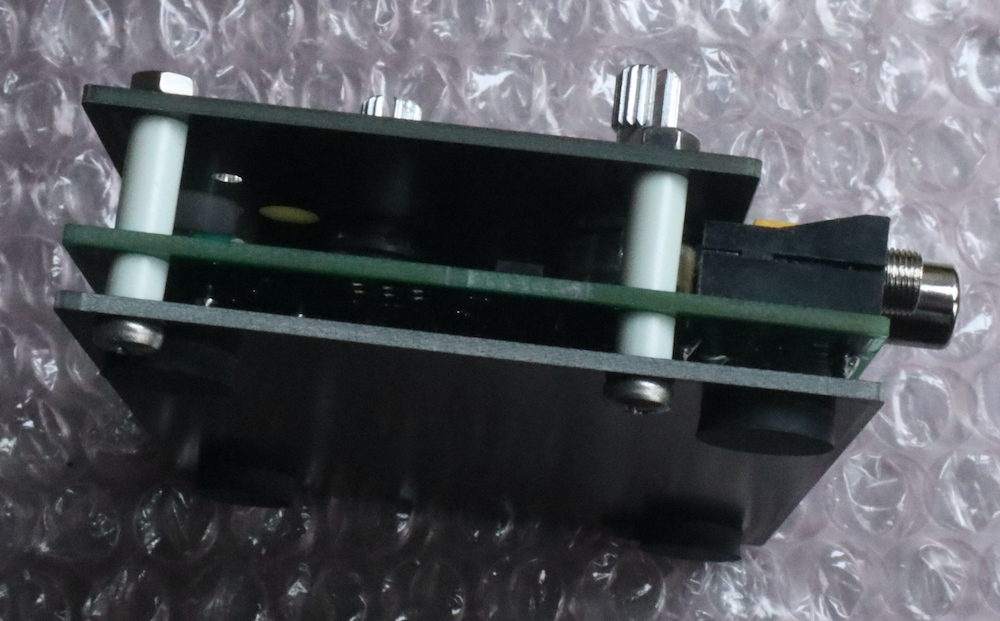

5. Screw it all together, check images for reference.

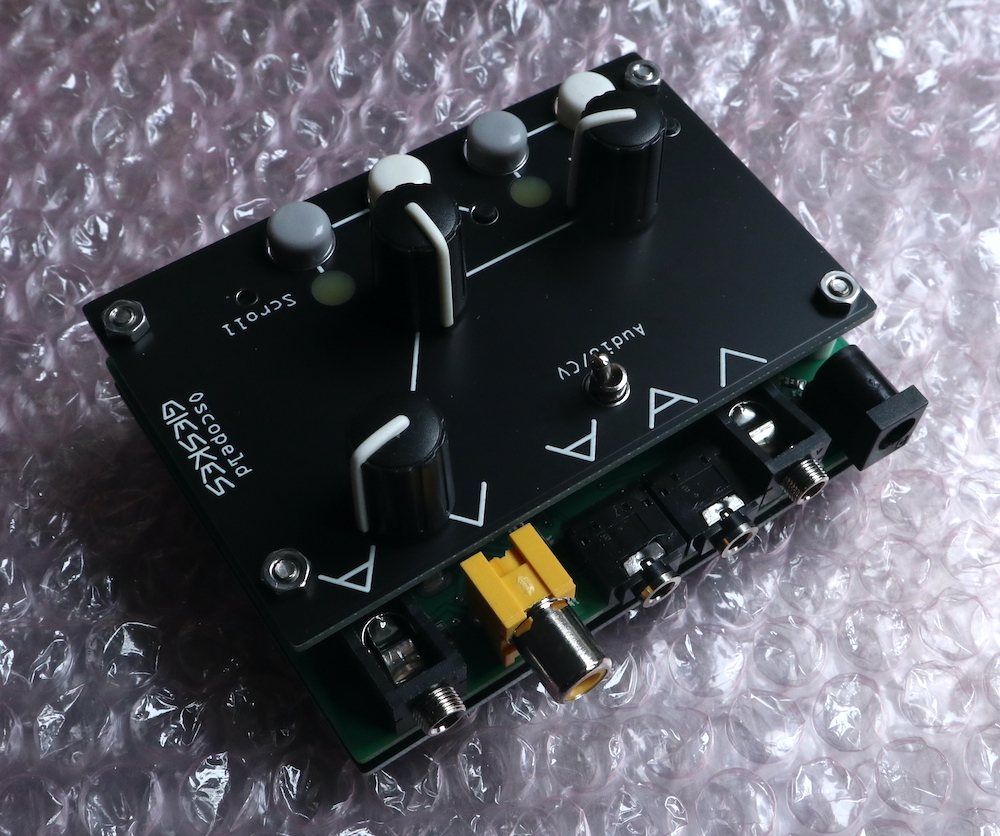

It should look like this now.
