?* kit assembling instructions

last update: 14 Feb 2023

About:

These are instructions for the Sony WM-F3030/WM-F3050. If you are using the WM-3000 i have pictures here to help assembly with that walkman. You can find these walkmans on ebay.com, or another local second hand website.

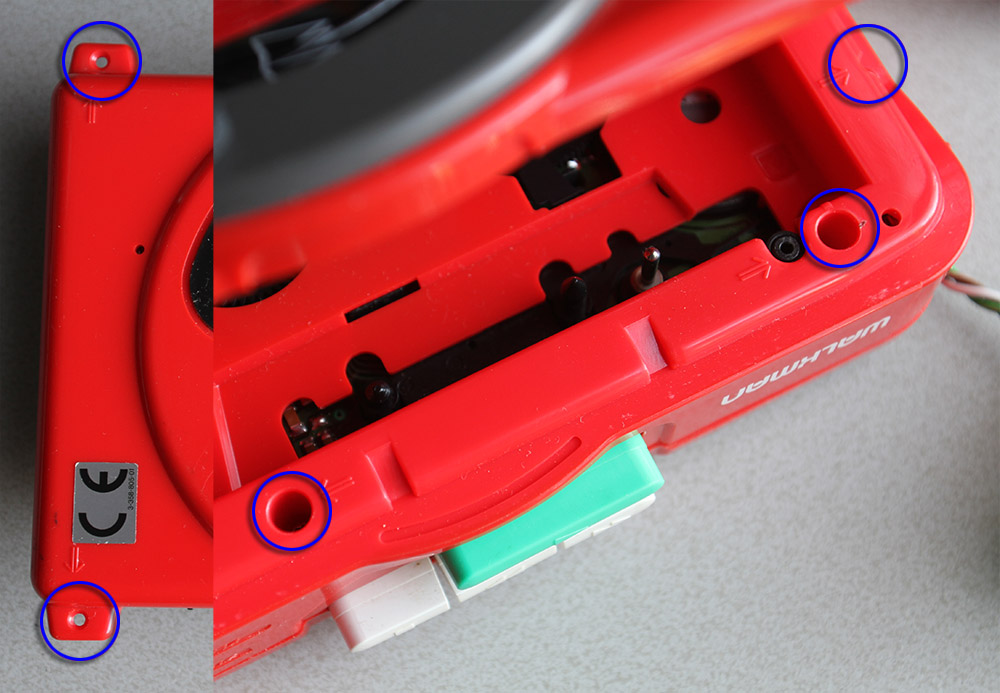

Open the walkman by removing the screws in the blue circles, keep them in a safe place.

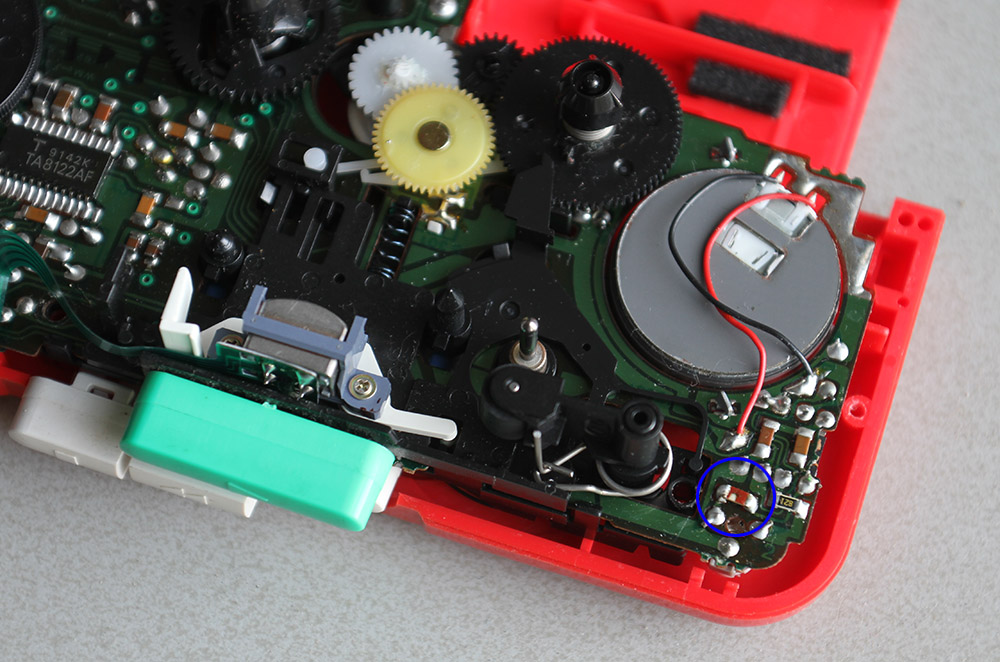

Desolder the resistor in the blue circle (add some solder on you soldering iron tip and heat the resistor on both ends till it sticks to your soldering iron).

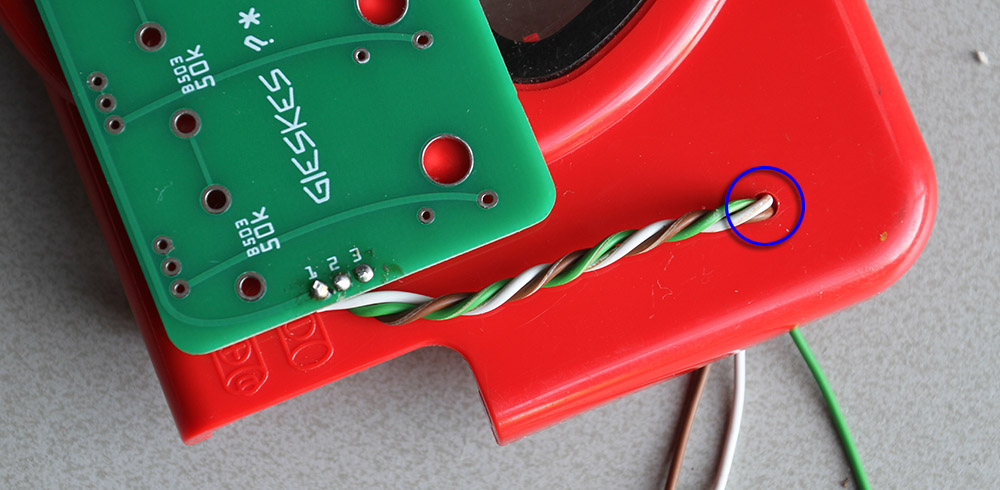

There is a dummy hole in the walkman, you can drill the hole bigger with a 3mm trill then the wires will feed tru ok into the walkman.

    Connect the wires to the PCB:
  1. White wire.
  2. Brown wire.
  3. Green wire.

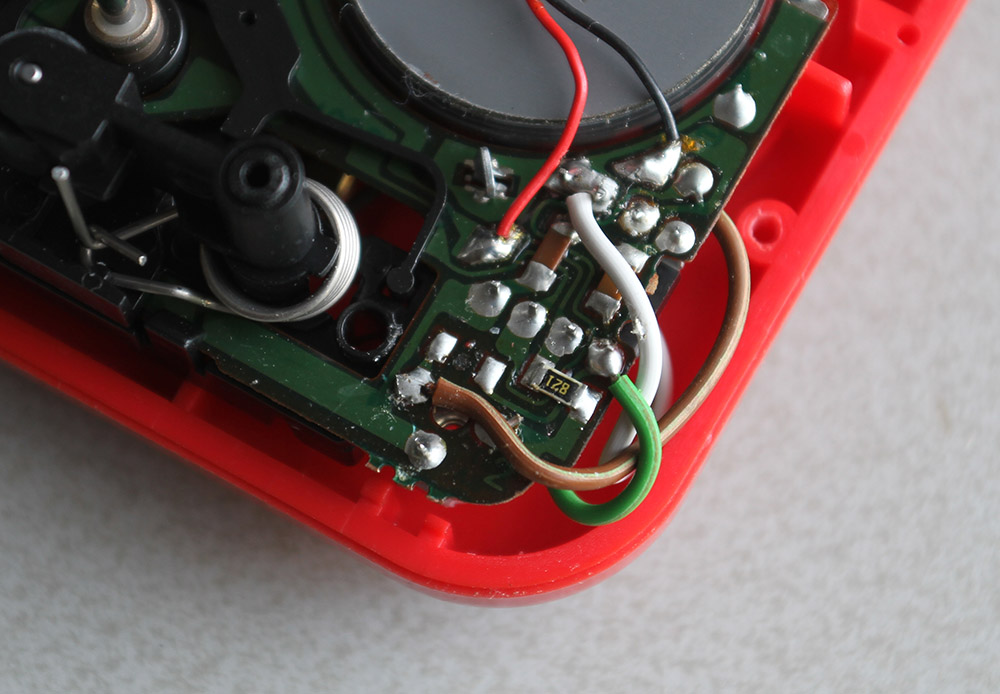

  1. Solder wires as above picture..
  2. Test if everything works as it should.
  3. If everything works stick the ?* PCB to the walkman with the tape.

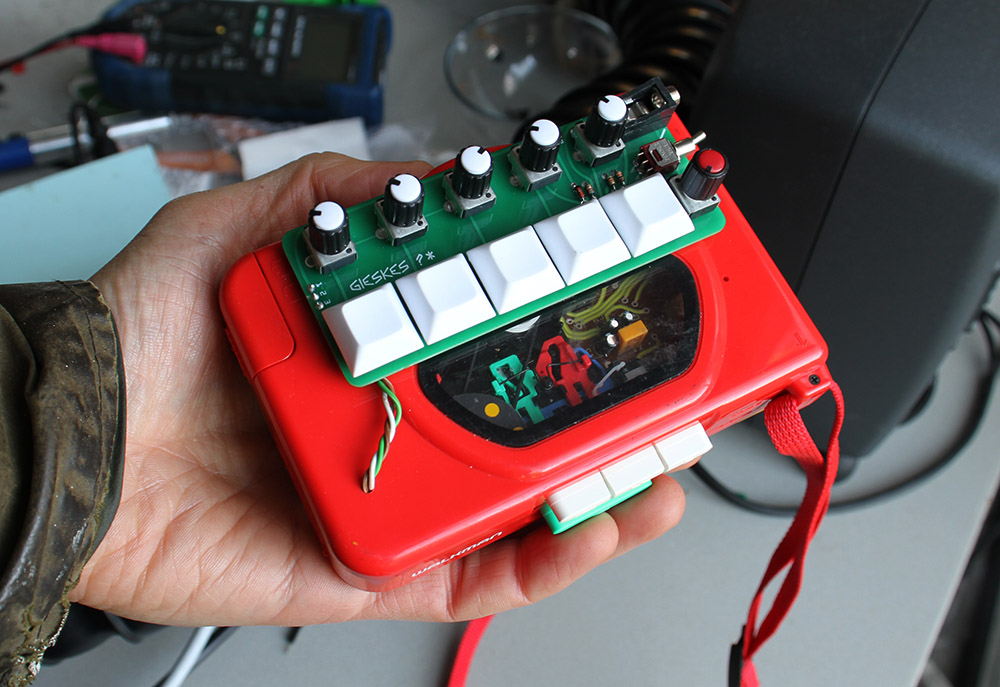

DONE!
