?* kit assembling instructions Retekess TR606

last update: 7 September 2024

About:

These are pictures to help with assembling when you use the Retekess TR606 walkman with the ?* kit.

This walkman sounds good, the volume is loud. It is not ideal for use with this kit because it has another chip in it then the other walkmans. To make it work i added a extra resistor to the PCB to make it work quite good.


Remove resistor R29 (it is next to the brown wire).

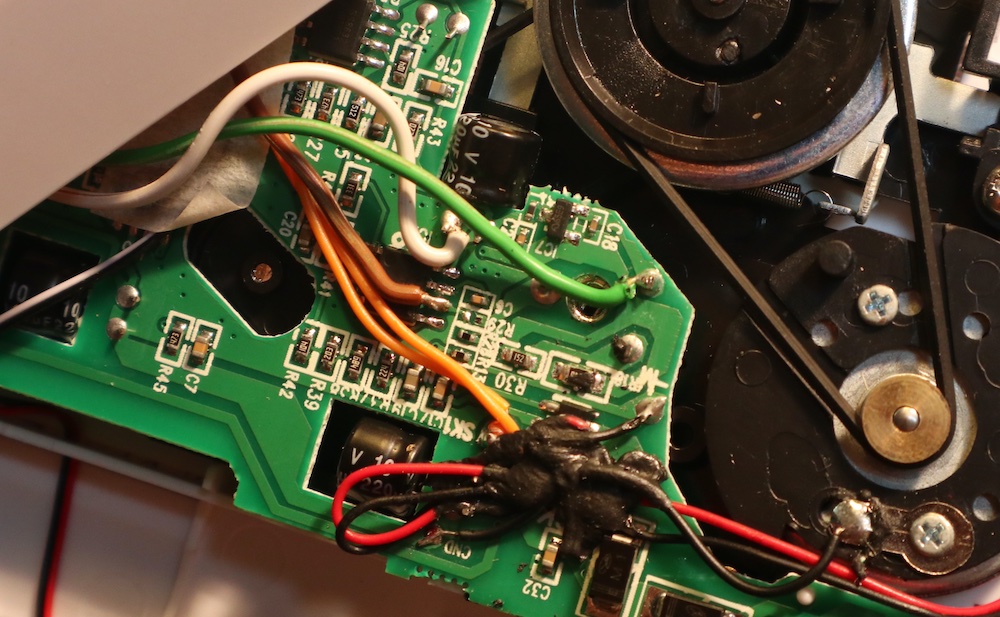

Now solder the wires as in the image above.


  1. Solder the components to the PCB
  2. Make the tuning hole in the casing bigger so the wires can go thru.
  3. Connect the wires from the walkman to the PCB.

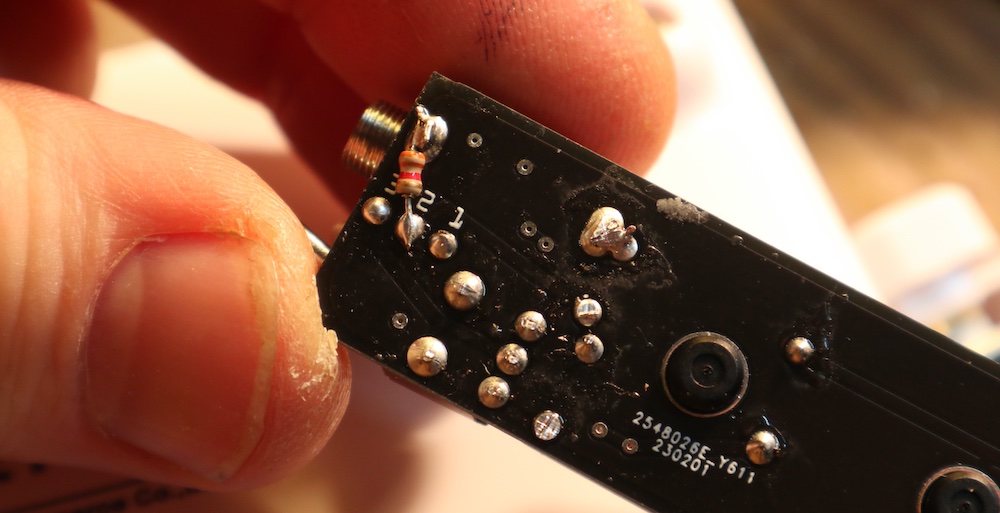

  4. Solder a 3k3 resistor from the wire connection 2 to a GND point on the PCB (see image below for reference).

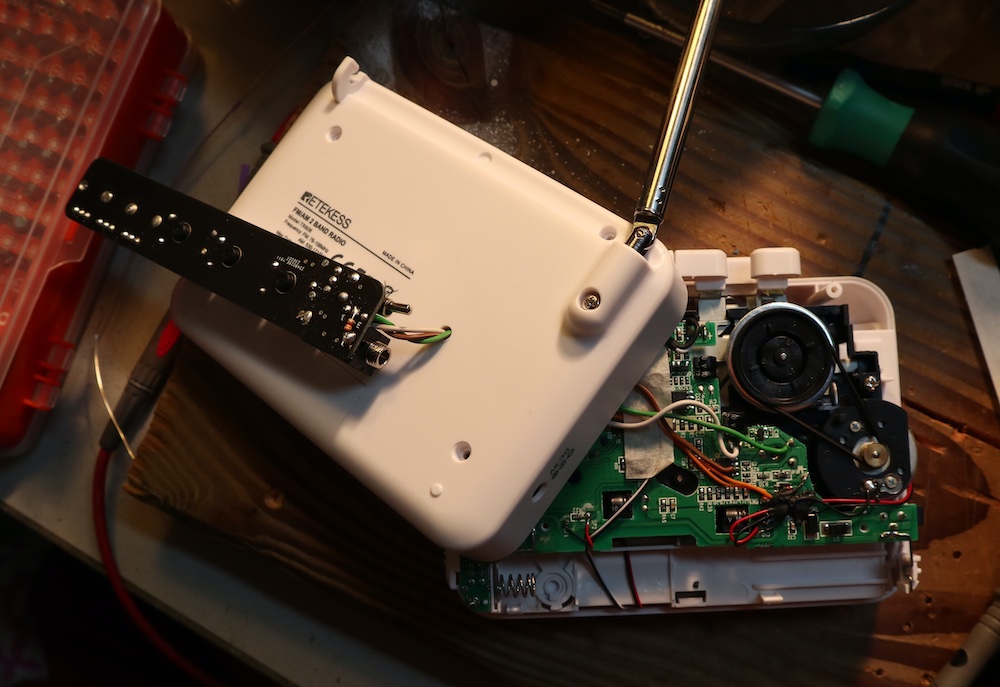

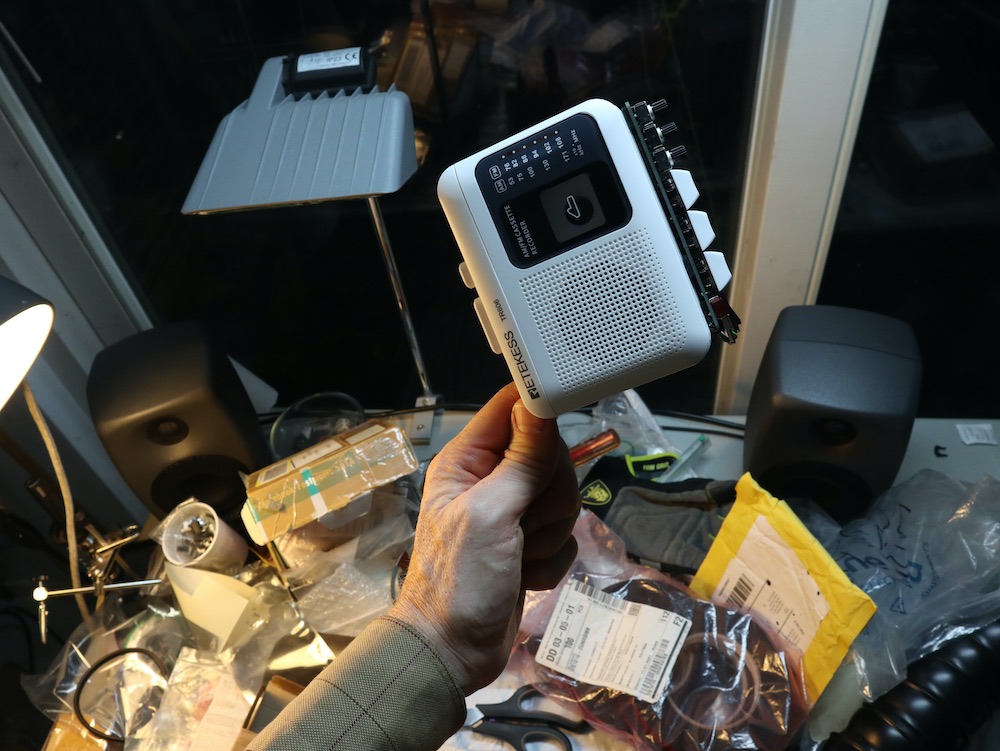

Now everything can be screwed back together and it should look like this maybe.
